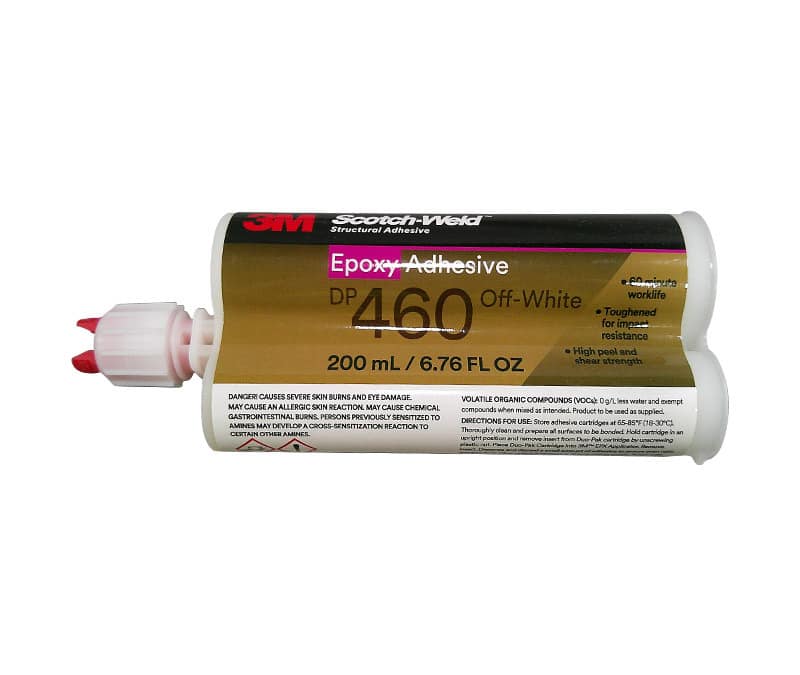

3M Scotch-Weld DP460 Off-White Epoxy Adhesive – 200 mL for High-Performance Structural Bonding

3M Scotch-Weld DP460 is a premium, high-performance structural epoxy adhesive designed for demanding aerospace, defense, and industrial applications requiring the highest levels of bond strength, chemical resistance, and service temperature performance available in a cartridge-format structural adhesive. DP460 delivers significantly higher lap shear strength than standard structural epoxies in the Scotch-Weld range, making it suitable for the most structurally demanding bonding applications.

The 200 mL DuoPak cartridge format provides a larger quantity than the standard 48.5 mL cartridge, making it economical for larger bonding operations where multiple joints or large surface areas are bonded from a single cartridge without frequent cartridge changes. The DuoPak delivers the two-component epoxy through a static mixer nozzle for consistent ratio and thorough mixing on every dispense.

DP460 off-white color provides a neutral, light appearance in the bond line compatible with aluminum, light composite, and painted surfaces. Its formulation includes toughening agents that improve impact resistance and peel strength compared to standard non-toughened epoxy systems, providing more durable structural joints in dynamically loaded aerospace assemblies.

Technical Information

3M Scotch-Weld DP460 achieves its high lap shear strength through an optimized high-functionality epoxy resin formulation that produces a tightly crosslinked network with a high glass transition temperature and superior resistance to stress concentrations at the bond line edge. The incorporation of rubber toughening agents into the epoxy matrix provides energy absorption capability that prevents brittle fracture propagation through the adhesive under impact and peel loading — the primary failure modes for un-toughened structural epoxies.

The increased cartridge volume of the 200 mL DuoPak allows continuous dispensing of larger quantities of adhesive without cartridge changes, important for bonding large structural panels or assemblies where interruptions in adhesive application could result in partially cured material being applied over fully fresh adhesive, creating weak spots in the bond layer. Consistent, uninterrupted application from a single cartridge ensures uniform adhesive age across the entire bonded area.

DP460 achieves its specified mechanical properties with a room-temperature cure cycle, but elevated temperature post-cure further improves high-temperature performance and chemical resistance. The full cure schedule, surface preparation requirements, and substrate-specific bond strength data are provided in the 3M Scotch-Weld DP460 technical data sheet.

Why Choose 3M Scotch-Weld DP460?

• ✅ Maximum Structural Bond Strength — Highest performance in the DP range
• ✅ Toughened Epoxy — Impact and peel resistant for dynamic loads
• ✅ 200 mL Large Cartridge — Economical for large bonding operations
• ✅ High Chemical Resistance — Aerospace fuels, fluids, and solvents
• ✅ Elevated Temperature Performance — Optional post-cure for improved Tg

Applications

3M DP460 is used for primary structure bonding, composite panel attachment, metallic bracket bonding, and demanding aerospace and defense structural assembly where maximum lap shear strength and toughened epoxy performance are required.

Frequently Asked Questions

Q: Why choose DP460 over DP110 or DP190?
A: DP460 provides higher lap shear strength and better toughness than DP110 and DP190, making it suitable for more demanding structural applications. DP110 and DP190 are appropriate for moderate-strength applications.

Q: What is the MPN for 3M DP460 Off-White 200mL?
A: MPN is 7000121321.

Q: What does ‘toughened epoxy’ mean?
A: Toughened epoxy contains rubber or other impact modifiers that absorb energy and prevent brittle crack propagation, improving impact resistance and peel strength compared to standard non-toughened epoxy formulations.

Q: What is the DuoPak format?
A: DuoPak is 3M’s name for their dual cartridge format, containing the two-component epoxy base and hardener in separate chambers dispensed through a static mixer nozzle at the correct mix ratio.

Q: Does DP460 require post-cure?
A: DP460 cures at room temperature to its specified strength. Optional elevated temperature post-cure improves high-temperature performance and chemical resistance. Refer to the 3M DP460 TDS for post-cure schedule details.
